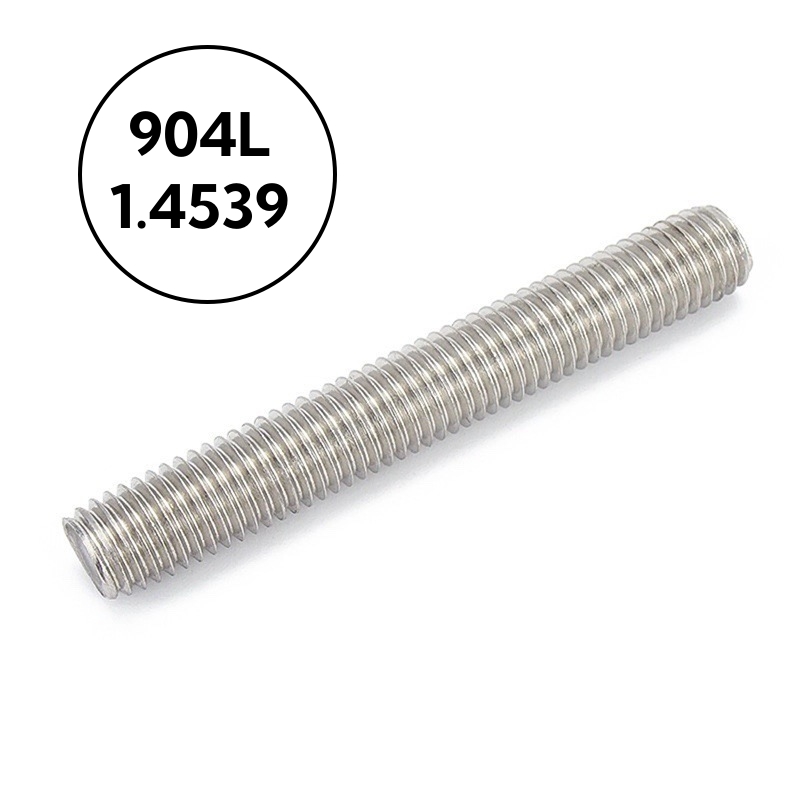

Name | 904L STUD BOLT |
Standard | DIN975/DIN976,IFI136 |
Size Range | M5-M64 or non-standard as requested |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | 904L,1.4539,UNS N08904 |
Grade | Grade 70 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets, or according to customers' requirement. |
| Payment | T/T,Western Union |
Corrosion resistant alloy 904L of similar grade
UNS | AISI/ASME | ID | W.Nr |
| N08904 | 904L | F904L | 1.4539 |
Chemical composition of corrosion-resistant alloy 904L
| Alloy | % | Ni | Cr | Mo | Cu | Fe | C | Mn | P | S |
| 904L | Min. | 24 | 19 | 4 | 1 | Allowance | ||||
| Max. | 26 | 21 | 5 | 2 | 0.02 | 2 | 0.03 | 0.015 |
Physical properties of corrosion-resistant alloy 904L
Density | 8.0g/cm³ |
| Melting point | 1300~1390°C |
Minimum mechanical properties of corrosion-resistant alloy 904L at room temperature
Tensile strength Rm N/mm² | Yield strength Rp0.2 N/mm² | Elongation rate A5% |
| 490 | 215 | 35 |
Name | 904L STUD BOLT |
Standard | DIN975/DIN976,IFI136 |
Size Range | M5-M64 or non-standard as requested |
Finish | Bright&Clean |
Marking | HT&FST or customization |
Material | 904L,1.4539,UNS N08904 |
Grade | Grade 70 |
Certificates | EN10204-3.1B |
Non-standards | OEM is available, according to drawing or samples |
Samples | Samples available |
Package | Bulk in box and then in cartons, then on pallets, or according to customers' requirement. |
| Payment | T/T,Western Union |
Corrosion resistant alloy 904L of similar grade
UNS | AISI/ASME | ID | W.Nr |
| N08904 | 904L | F904L | 1.4539 |
Chemical composition of corrosion-resistant alloy 904L
| Alloy | % | Ni | Cr | Mo | Cu | Fe | C | Mn | P | S |
| 904L | Min. | 24 | 19 | 4 | 1 | Allowance | ||||
| Max. | 26 | 21 | 5 | 2 | 0.02 | 2 | 0.03 | 0.015 |
Physical properties of corrosion-resistant alloy 904L
Density | 8.0g/cm³ |
| Melting point | 1300~1390°C |
Minimum mechanical properties of corrosion-resistant alloy 904L at room temperature
Tensile strength Rm N/mm² | Yield strength Rp0.2 N/mm² | Elongation rate A5% |
| 490 | 215 | 35 |
